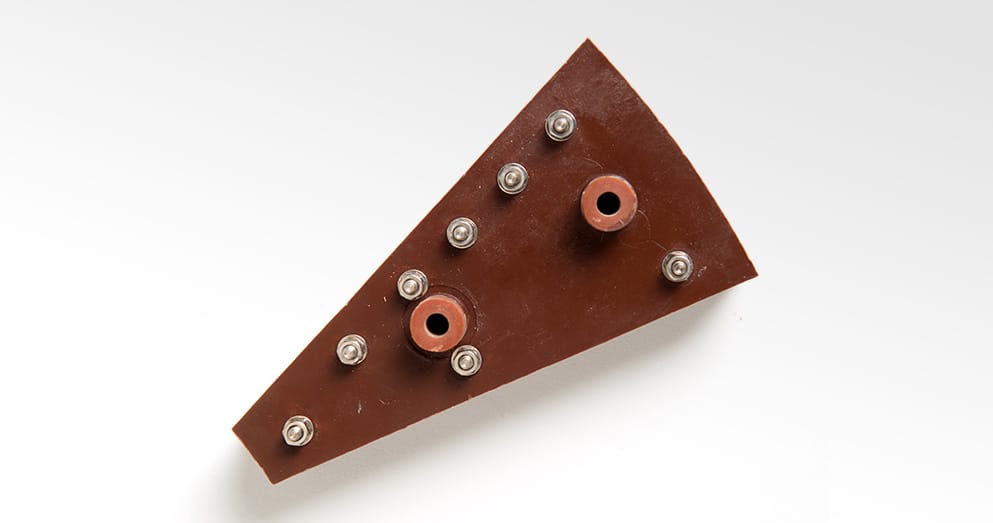

Zener Diode
Zener diode blocks are employed in Synchronous Motor Starting Hubs to control the voltage at which Thyristors fire, allowing the hubs to function correctly.

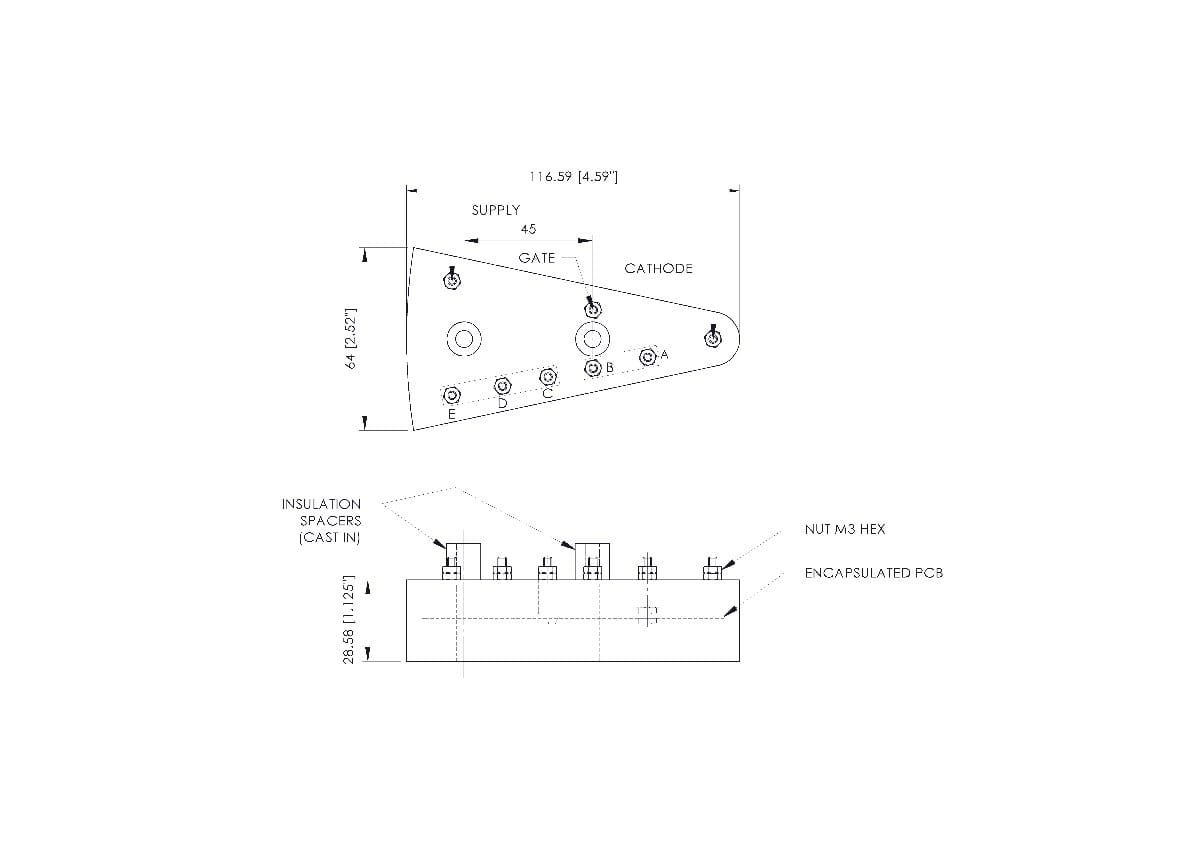

| Design | Encapsulated design |
| Certification | Uncertified but constructed to pre-ATEX Baseefa standards |
| Other Information | Replacement for D5524783, D5526233, C5526707, 8007763 & 8007764 |
Regulates and stabilises voltage in a circuit
Prevent problems that can occur when the supply or load voltage varies
Small and less expensive when compared to other similar diodes
Diodes will still operate at standard voltage
Will not blow out if the voltage is still under their threshold
Very high performance standard - equipped to handle a higher voltage than the standard operating voltage
Additional resistance may be incorporated into the blocks, where specified
Replacement un-encapsulated blocks D5524000, D5524001, D5524334 & D5522570 are available on special order
