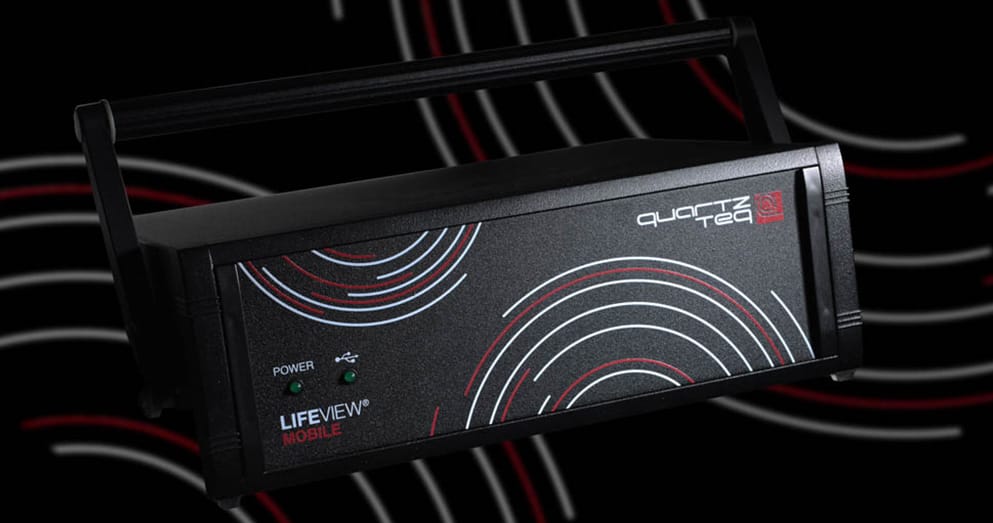

LIFEVIEW MOBILE

The LIFEVIEW® MOBILE system offers a flexible and mobile approach to analysing the machines insulation system periodically online and during investigative periods of maintenance or during planned outages, ultimately ensuring greater availability of plant. Either fully supplied to you with the benefit of detailed training, or available to you as a service with our experienced engineers providing the analysis you need.

A portable solution for monitoring

The flexibility of the LIFEVIEW MOBILE system demonstrates huge benefits through the capacity to monitor multiple machines. With three Partial Discharge (PD) inputs, two Shaft Voltage inputs, an Air Gap Flux input and automatic report generation, the LIFEVIEW MOBILE can be supplied with full training or with the option to utilise our experienced engineers.

Online monitoring
Capable of monitoring; PD, Shaft Voltage and Air Gap Flux
Various display options for crosstalk and phase to phase PD recognition
Compatible with all LIFEVIEW PD sensors as well as PD couplers from other manufacturers

Technical Specification
Standards:	IEC60270 & IEC TS 60034-27
Partial Discharge:	3 channels
Shaft Voltage:	2 channels
Air Gap Flux Module:	1 channel
A/D Converter Resolution:	16 bits – Y-axis normalised in [pC] or [nC]
Real Time Processed Pulse Repetition Rate:	50kS/s
PD Cutoff Frequency:	Low: 100kHz, 500kHz \| High: 500kHz, 1MHz, 10MHz
Software
Graphical User Interface For:	- Partial Discharge: Phase resolved PD patterns displayed in a phase or time reference mode - Partial Discharge Values: Apparent charge (Qm, Qapp) - Shaft Voltage waveform display including harmonic orders - Shaft Voltage and current measurement displaying maximum and RMS values - Air Gap Flux leakage flux display with integrated total flux and normalised difference between rotor coils - Auto-Report PD phase resolved patterns
Power Supply
Power Supply:	100 - 240V AC // 50-60Hz
Operating Temperature:	0 to 45°C
Humidity:	10% to 90%
