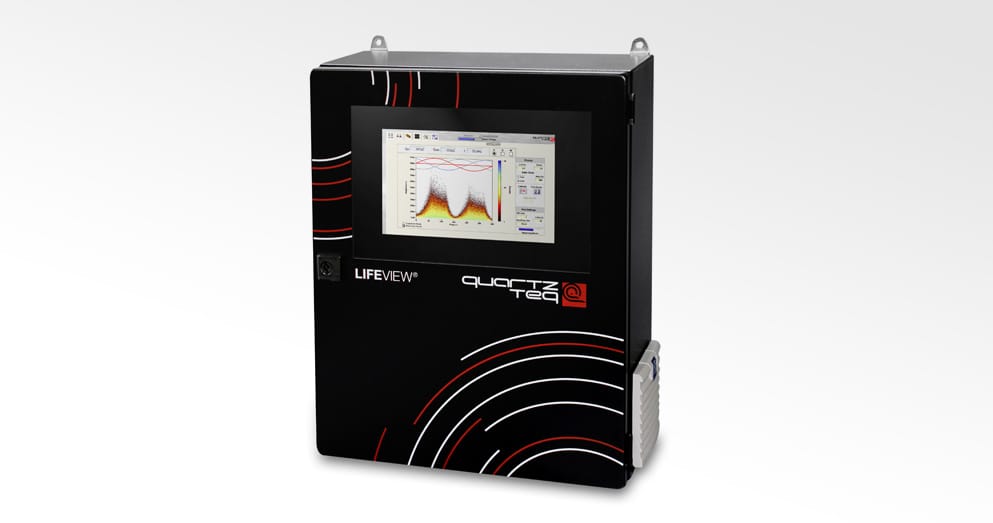

LIFEVIEW LIVE

A permanent installation, continuously monitoring the health of your HV machines. LIFEVIEW® LIVE is the ultimate in multiple parameter analysis and has been specifically designed for those critical assets, continuously monitoring a machine online, throughout its operational life. With permanent access you can instantly review Partial Discharge (PD) levels or rotor status, allowing maintenance to be meticulously planned.

For Partial Discharge acquisition and more…

Offering permanent, remote access enabling both the user and the Quartzteq expert to instantly review machine status, LIFEVIEW LIVE is a modular solution which can be adapted to incorporate additional multiple parameter measurement. A trend is automatically updated with each measurement taken, clearly showing the evolution of PD levels or further optional information regarding rotor and stator insulation status.

Additional monitoring modules available include; Shaft Voltage and Air Gap
Provides the highest level of reassurance for critical assets requiring continuous monitoring
Only one PD coupler per phase is required
Use of ‘forbidden band technique’ enables a PD pattern with no thyristor/diode commutation disturbance to be acquired

Data Acquisition
Partial Discharge:	3 channels
Shaft Voltage:	2 channels
Air Gap Flux Module:	1 channel
Phase Reference:	External, Line, Sensor
Real Time Processed Pulse Repetition Rate:	50kS/s
Forbidden Band Noise Rejection:	selectable inteference band removal
Interface
Resolution:	16 bits - Y-axis normalised in [pC] or [nC]
Power Supply:	100 - 240V AC // 50-60Hz
Relay Output:	4 NO/NC Channels
Analog Output:	4 Channels, 4-20mA
Ethernet/LAN:	RJ45, 100 Mbit/s
Software
Graphical User Interface For:	- Partial Discharge: Phase resolved PD patterns displayed in a phase or time reference mode - Partial Discharge Values: Apparent charge (Qm, Qapp) - Shaft Voltage waveform display including harmonic orders - Shaft Voltage and current measurement displaying maximum and RMS values - Air Gap Flux leakage flux display with integrated total flux and normalised difference between rotor coils - Auto-Report PD phase resolved patterns
Applicable Standards and Operating Conditions
Operating Ambient Temperature:	0 to 45 deg C
Humidity:	10% to 90%
Storage Temperature:	-40 deg C to +60 deg C
Area Classifcation:	Safe Area Installation
Standards:	IEC60270 & IEC TS 60034-27
