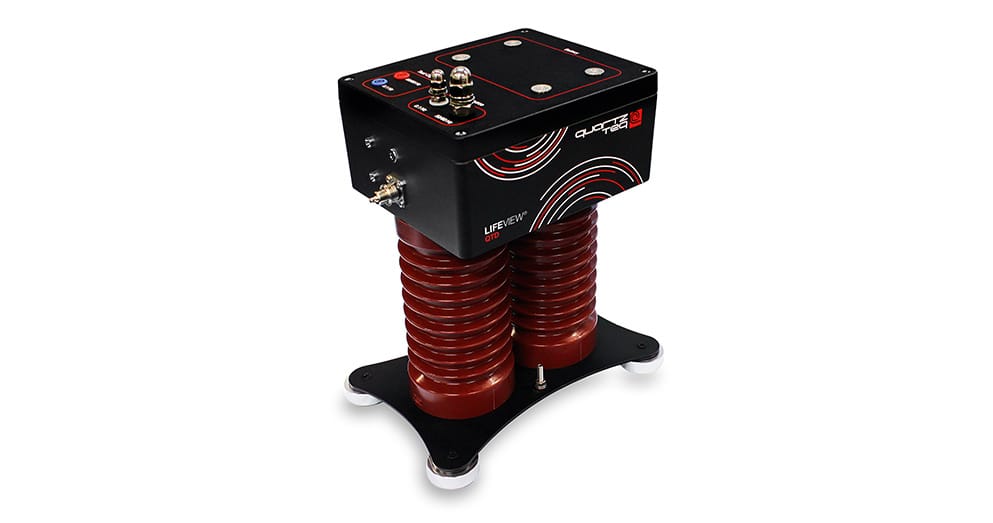

LIFEVIEW QTD

As part of a planned maintenance program, the LIFEVIEW® QTD enables you to monitor both the Partial Discharge (PD) and Dissipation Factor (Tan Delta) of your winding insulation. With a built in PD coupler, designed to take PD measurements; rated up to 20kV phase to ground and with three switchable measuring ranges, the LIFEVIEW QTD is an essential tool to monitor the ageing of your rotating electrical asset.

Monitoring PD and Tan Delta

The LIFEVIEW QTD can be either fully supplied to you with the benefit of detailed training, or available to you as a service with our experienced engineers providing the analysis you need.

Integrated approach to PD and Tan Delta measurements
Testing up to 20kV
Measures Tan Delta
A high voltage power source is required

Standards:	IEC60270 & IEC TS 60034-27
Partial Discharge:	1 channel
A/D Converter Resolution:	2 channels
A/D Converter Resolution:	16 bits – Y-axis normalised in [pC] or [nC]
Real Time Processed Pulse Repetition Rate:	50kS/s
PD Cutoff Frequency:	Low: 100kHz, 500kHz \| High: 500kHz, 1MHz, 10MHz
Capacitance Range:	2nF .. 10μF
Loss Factor Range:	10-5 .. 1000 exponential
Voltage Range:	0-20kV phase to ground
Frequency Range:	10 .. 100 Hz
Current Range:	Maximum 10A (selectable shunts for accurate measurements according to capacitance of test object)
Max. Voltage Rating:	28kV peak
Software
Graphical User Interface For:	Partial Discharge: Phase resolved PD patterns Partial Discharge Values: Apparent charge (Qm, Qapp) in [nC] or [pC] Dissipation Factor measurement Capacitance, Voltage and Current Measurement Instrument data acquisition control panel Auto-report: Generate measurement report (Excel Export)
Power Supply
Power Supply:	5V DC // 1A
Operating Temperature:	0 to 45°C
Humidity:	10% to 90%
