LIFEVIEW PDA II

LIFEVIEW® PDA II is a permanent online condition monitoring system for high voltage rotating machines such as motors and generators. It provides continuous monitoring of the Partial Discharge (PD) activity acting as a true watchdog warning the operator when the deviation is beyond the defined limits. The additional data provided by the system enables an expert to assess the insulation conditions of the machinery. Designed to specifically monitor PD, the LIFEVIEW PDA II is a cost effective solution which plays an important role within the overall site maintenance programme.

Unique features include; easy to understand data/results, pre-set warning thresholds, programmable filters and simple analogue (4-20mA, relays) connections to the SCADA or DCS system all of which make the LIFEVIEW PDA II an ideal solution for operators looking for a low cost, effective, user friendly PD monitoring system without complex software. PD measurements can be easily downloaded by customer/operator and sent to Quartzteq experts for detailed analysis.

Depending on site requirements, the PDA II is available in two different versions:

PDA II IP66 version for installation in a safe area
PDA II ATEX version for installation in a hazardous area

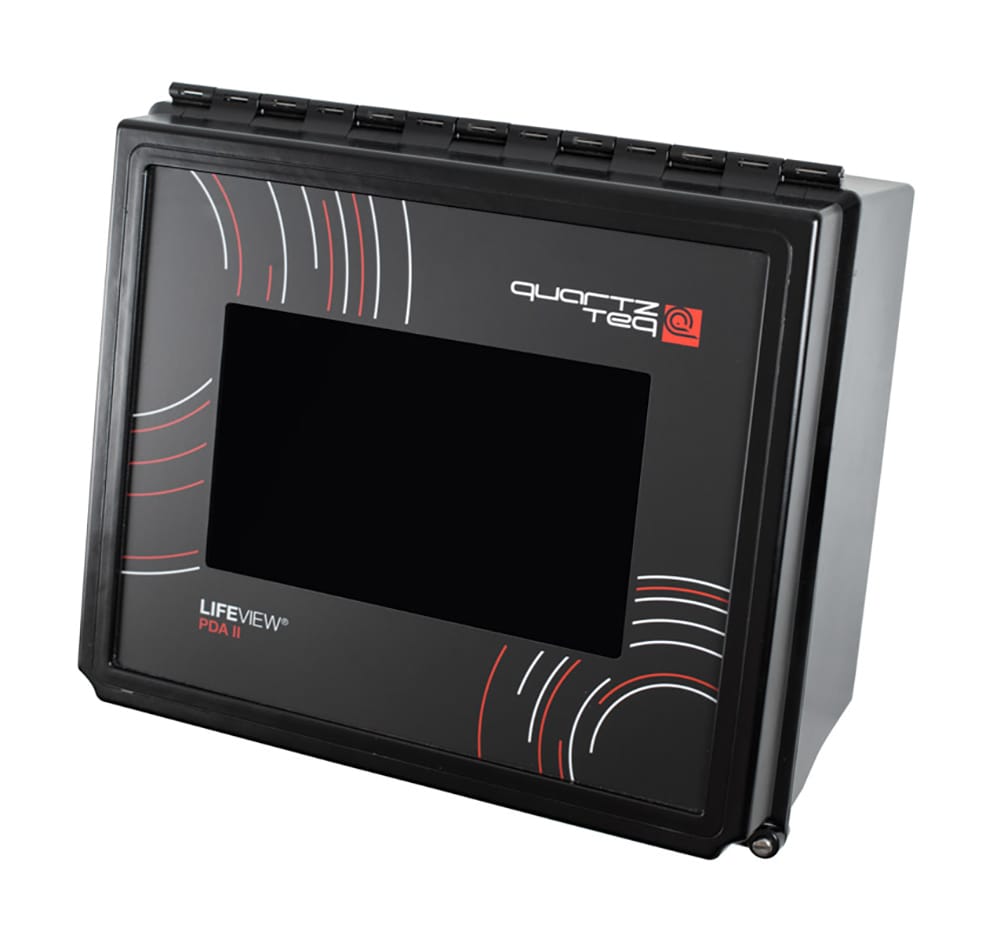

PDA II IP66 Version

For installation in a safe area
External USB and Ethernet ports
24/7 permanent online monitoring of Partial Discharge (PD)
Remotely accessible by any computer connected to the same network
Alarms can be configured when a measurement reaches a critical value
Stores up to 3 years of PD measurements including patterns (depending upon measurement type and interval)
Compatible with all Quartzteq sensors as well as PD sensors from other manufacturers
Additional modules can be added to measure Shaft Voltage and Air Gap Magnetic Flux

In-Built Computer
Low heat dissipation processor
4GB RAM
256GB SSD
Windows 10 Professional

Data Acquisition
Partial Discharge	3 Channels
Shaft Voltage Module	2 Channels
Air Gap Flux Module	1 Channel
A/D Converter Resolution	16 Bits
A/D Converter Sampling Rate	50kS/s
PD Low Cut-Off Frequency	100kHz, 500kHz, 1MHz, 2MHz
PD High Cut-Off Frequency	1MHz, 10MHz

Interfaces
Power Supply	100-240VAC, 50-60Hz
Relay Output	4 x NO/NC Channels
Analog Output	4 x Channels 4-20mA
Ethernet	2 x RJ-45 (1xRJ45 External)
USB	2 x USB external ports

Software
Main Display	PD Trends (Qm), Warnings / Alarms
Partial Discharge Trend	Qm and Qapp
Output Control	Analogue & Relay Output
Partial Discharge Patterns	Y-axis in [pC] or [nC]
Shaft Voltage Module	Measured Signal & FFT
Shaft Voltage Trend	Current & Voltage
	RMS Value & Max. Value of the 10 First Harmonics
Air Gap Flux Module	Normalised Deviation

Environment
Operating Temperature	0 to 50°C
Relative Humidity	10% to 90%
Protection Degree	IP66
Area Classification	Safe Area Installation

Mechanical Specifications
Dimensions (WxHxD)	370mm x 330mm x 220mm (Without Cable Glands)
Weight	8kg

Optional Communication Interface WiFi

Modbus TCP/IP

24/7 Monitoring

Automatic Periodic Measurements

Partial Discharge (PD) Trending

PD Pattern Graph (With the advanced software version)

Additional shaft voltage and air gap magnetic flux modules with trend

Remote access via RJ45 Ethernet connection

2 External USB ports

2 Alarm / Warning channels

4 NO / NC relay outputs

4 Active 4-20mA outputs

Stores up to 3 years of PD measurements including patterns (depending upon measurement type and interval)

Compatible with all Quartzteq sensors as well as PD couplers from other manufacturers

LIFEVIEW PDA II IP66 Data Sheet

Shaft Voltage module can be added

Air Gap Magnetic Flux module can be added

Optional Communication Interface WiFi

Modbus TCP/IP

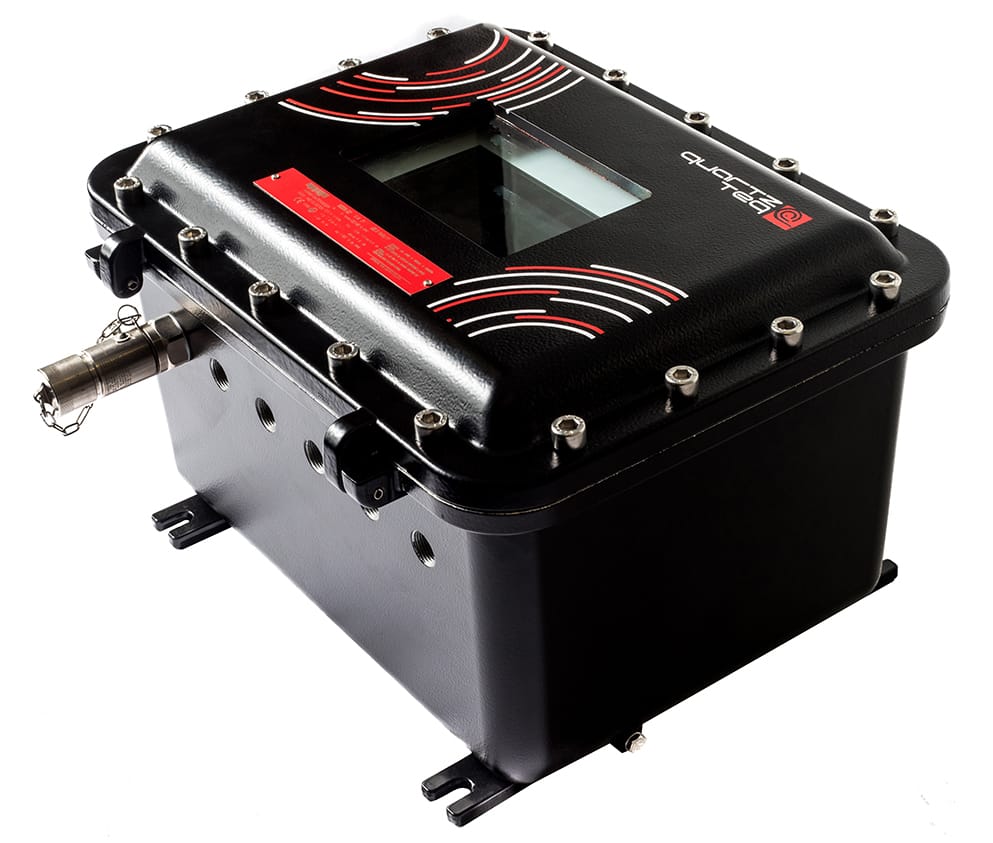

PDA II ATEX Version

For installation in hazardous areas
Hazardous Area ATEX/IECEx rating: EX d IIB T5 Gb
1x External Ethernet port
24/7 permanent online monitoring of Partial Discharge (PD)
Remotely accessible by any computer connected to the same network
Alarms can be configured when a measurement reaches a critical value
Stores up to 3 years of PD measurements including patterns (depending upon measurement type and interval)
Compatible with all Quartzteq sensors as well as PD sensors from other manufacturers
Optional module can be added to measure Air Gap Magnetic Flux

In-Built Computer
Low heat dissipation processor
4GB RAM
256GB SSD
Windows 10 Professional

Data Acquisition
Partial Discharge	3 Channels
Air Gap Flux Module	1 Channel
A/D Converter Resolution	16 Bits
A/D Converter Sampling Rate	50kS/s
PD Low Cut-Off Frequency	100kHz, 500kHz, 1MHz, 2MHz
PD High Cut-Off Frequency	1MHz, 10MHz

Interfaces
Power Supply	100-240VAC, 50-60Hz
Relay Output	4 x NO/NC Channels
Analog Output	4 x Channels 4-20mA
Ethernet	2 x RJ45 (1xRJ45 External)
USB	2 x USB Internal Ports

Software
Main Display	PD Trends (Qm), Warnings / Alarms
Partial Discharge Trend	Qm and Qapp
Output Control	Analogue & Relay Output
Partial Discharge Patterns	Y-axis in [pC] or [nC]
Air Gap Flux Module	Normalised Deviation

Environment
Operating Temperature	0 to 50°C
Relative Humidity	10% to 90%
Protection Degree	IP66
Area Classification	ATEX / IECEx rating: EX d IIB T5 Gb

Mechanical Specifications
Dimensions (WxHxD)	415mm x 330mm x 260mm (Without Cable Glands)
Weight (Approx.)	28kg
